Z690 Taichi

  • Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
  • 20 Phase SPS Dr.MOS Power Design
  • 4 x DDR5 DIMMs
    Supports Dual Channel, up to 6400+ (OC)
  • 2 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
  • Graphics Output Options: HDMI, 2 Thunderbolt™ Type-C
  • Realtek ALC1220 7.1 CH HD Audio Codec, ESS SABRE 9218 DAC, WIMA Audio Caps
  • 6 SATA3, 1 Independent SATA3

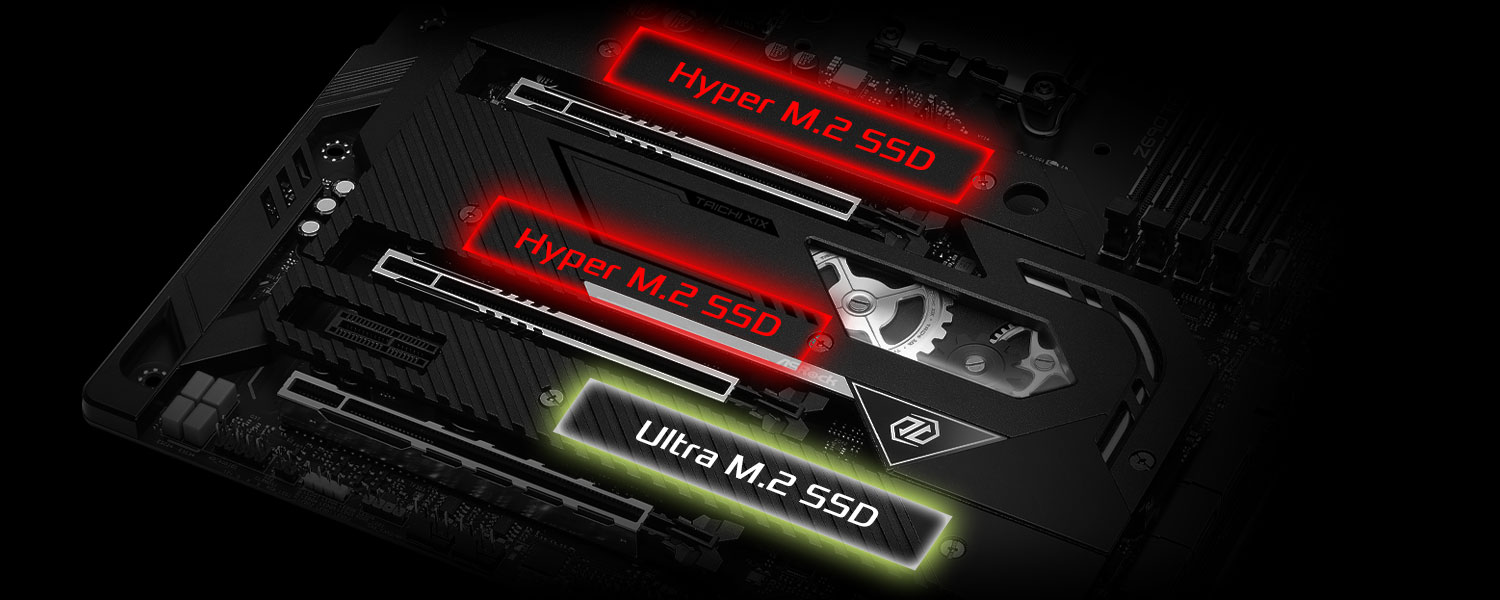

    2 Hyper M.2 (PCIe Gen4 x4)
    1 M.2 (PCIe Gen3 x2 & SATA3)
  • 2 Thunderbolt™ 4/USB4 Type-C
    1 USB 3.2 Gen2x2 Front Type-C
    2 Rear USB 3.2 Gen2 Type A
    8 USB 3.2 Gen1 (4 Rear, 4 Front)

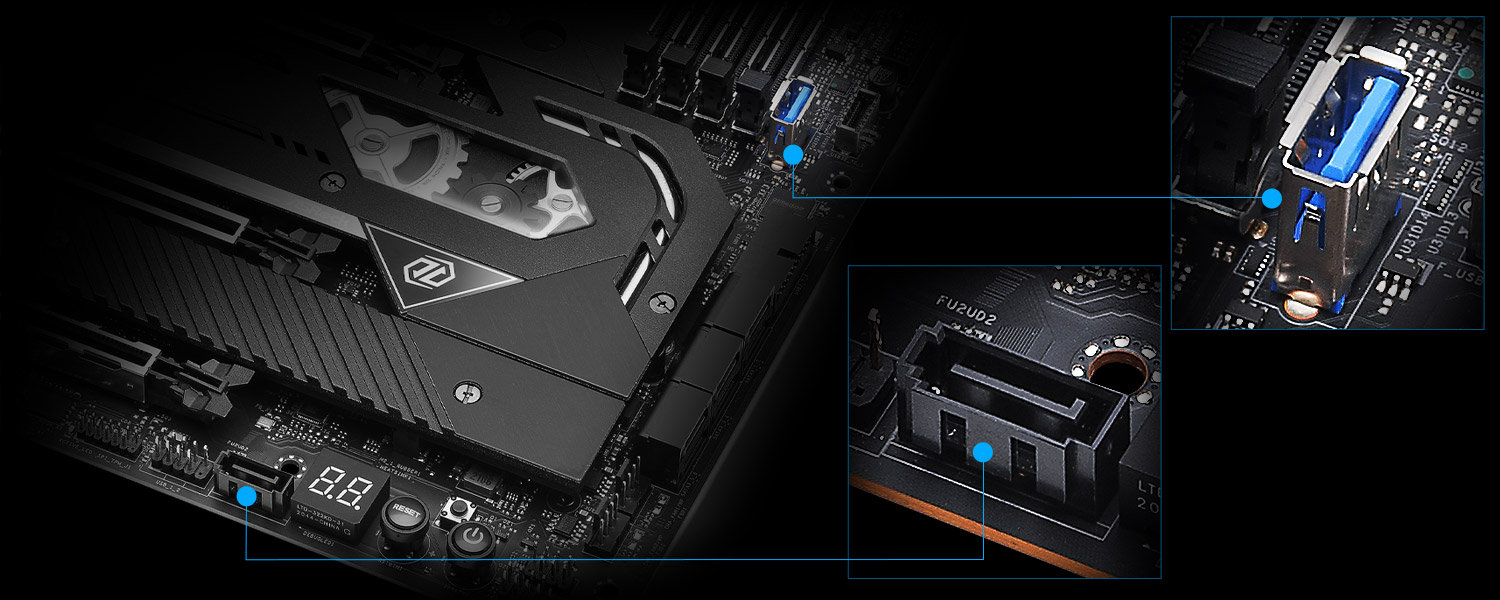

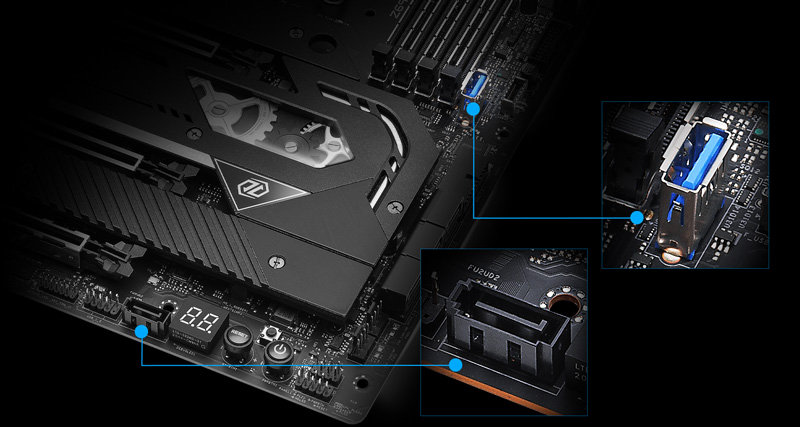

    1 Independent USB 3.2 Gen1 Type A Port
  • Killer E3100 2.5G LAN, Intel® Gigabit LAN
  • Killer AX1675 802.11ax (WiFi 6E) + Bluetooth 5.3

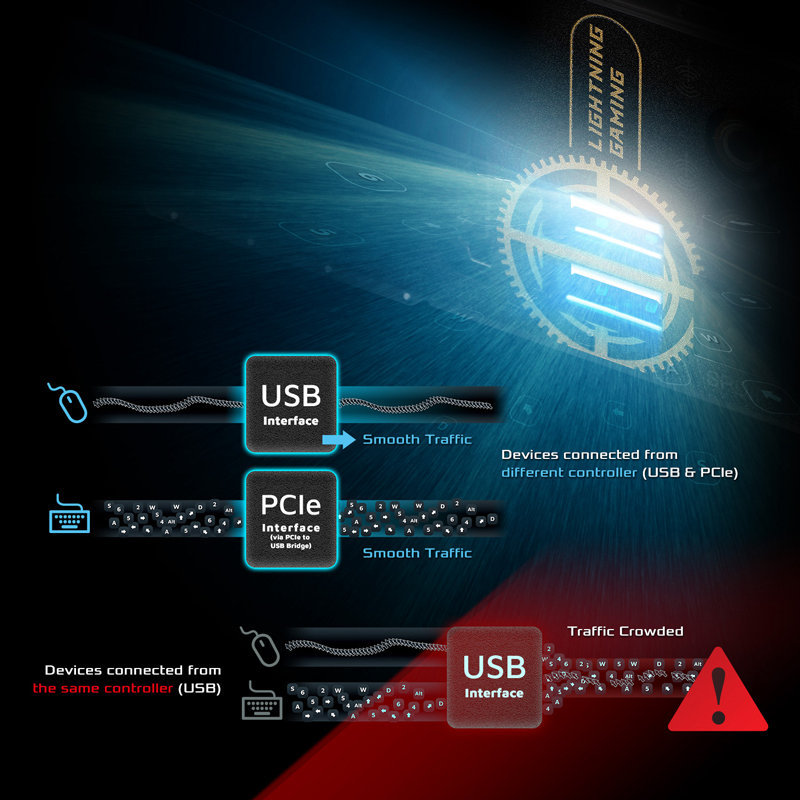

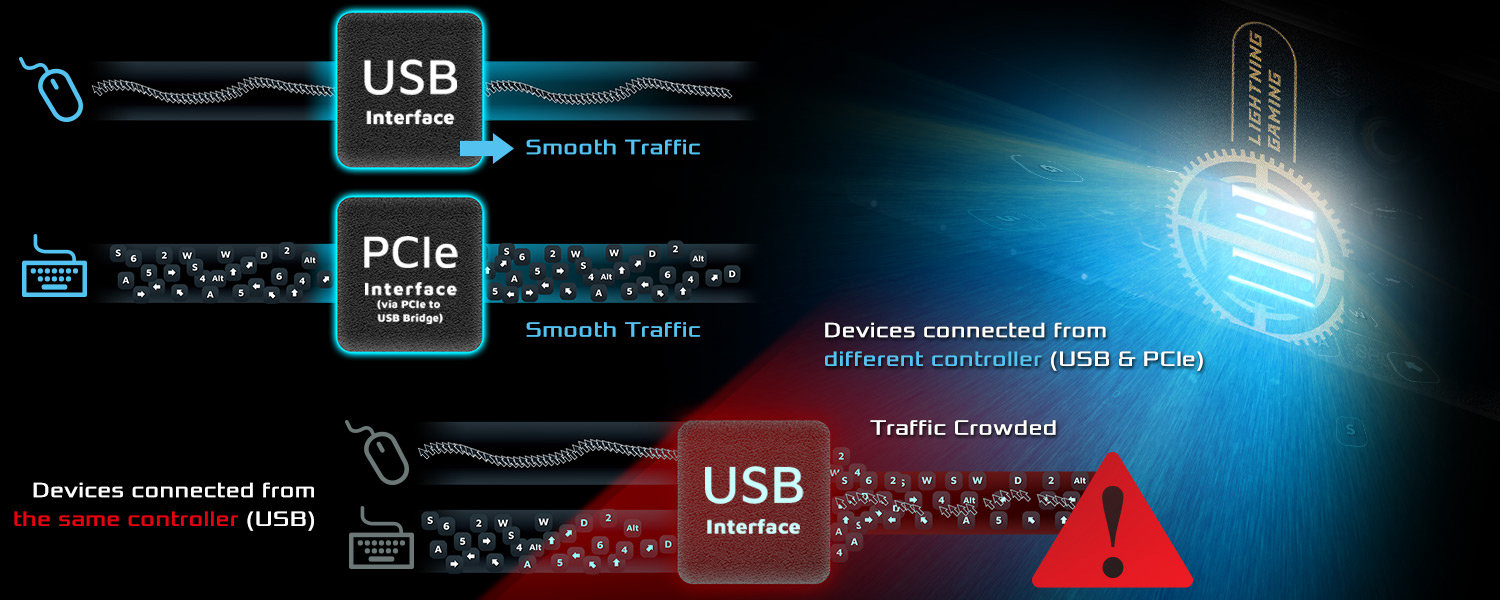

  • Lightning Gaming Ports
  • ASRock Graphics Card Holder
This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
